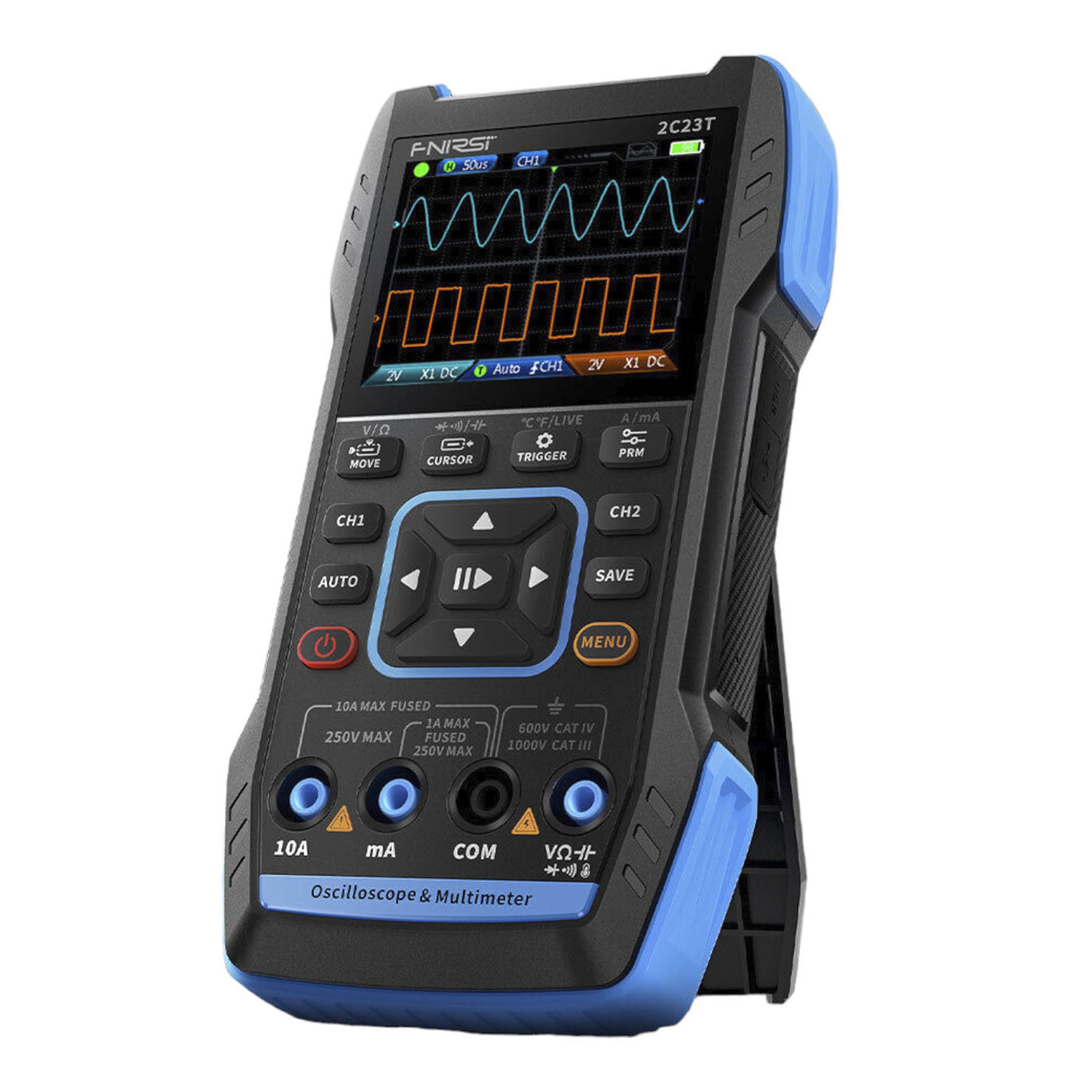

FNIRSI 2C23T Oscilloscope Multimeter Signal Generator 3-in-1 2.8" Display Screen Full Set

FNIRSI 2C23T is a full-featured, highly practical, two-channel Three-in-One digital oscilloscope designed by FNIRSI for the maintenance and development industry.

This device is equipped with three main functions an oscilloscope, a multimeter, and a signal generator.

The oscilloscope adopts FPGA+MCU+ADC hardware architecture with 50ms/s sampling rate, 10MHz analog bandwidth, built-in high voltage protection module, maximum support ±400V peak voltage measurement;

Support saving and viewing waveform screenshots for analysis. The multimeter has 4-digit true rms 10000 points and supports AC/DC voltage and current measurement, as well as capacitance, resistance, diode, on/off, and other measurement functions.

Whether used by professionals, factories, schools, enthusiasts, or families, it is the ideal multi-functional tool.

Equipped with a built-in DDS function signal generator, it can output 7 types of function signals with a maximum output power of 2MHz for all signals and 1Hz step; Output frequency, amplitude, and duty cycle are adjustable.

Using a 2.8″ HD 320*240 LCD display and a built-in 3000mAh lithium battery, the standby time can reach 6 hours. Provide users with more and more practical functions in a compact size as well as good portability.

Product Parameter

1. Display screen: 2.8 inch HD color screen
2. Resolution ratio: 320*240
3. Charging specifications: Type-C (5V/1A)
4. Battery: 3000mAH lithium battery
5. Support function: Oscilloscope, Signal generator, Multimeter (view functional parameter for details)
6. Standby time: 6h (laboratory theoretical maximum)
7. Language: English, Russian, Portuguese, Japanese, German
8. Product Volume: 167*89*35mm

Function Signal Generator-Parameters

1. Channel: Single Channel
2. Frequency: 1Hz-2MHz
3. Amplitude: 0.1-3.3V

Oscilloscope Parameter

1. Channel: Dual channel
2. Sample rate: 50M
3. Analog bandwidth: 10M(Dual channel independent 10M)
4. Storage Depth: 32kb
5. Impedance: 1MΩ
6. Time base range: 50ns-10s
7. Vertical sensitivity: 20mV/div-10V/div (X1)
8. Maximum measured voltage: ±400V
9. Trigger mode: AUTO/Normal/Single
10. Trigger Type: Rising edge, Falling edge
11. Display mode: YT/Scroll
12. Coupling method: AC/DC
13. Save waveform screenshot: Yes
14. Computer viewing waveform: Yes

Package Includes

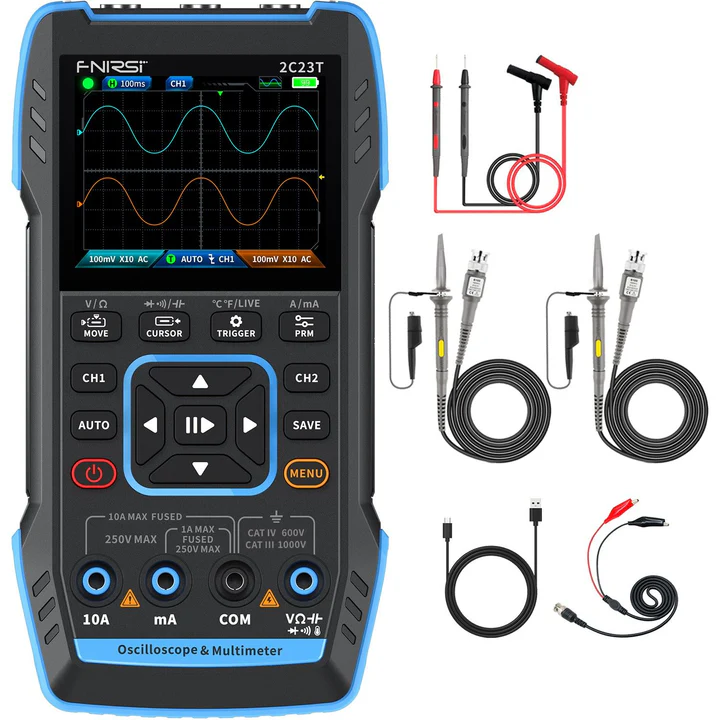

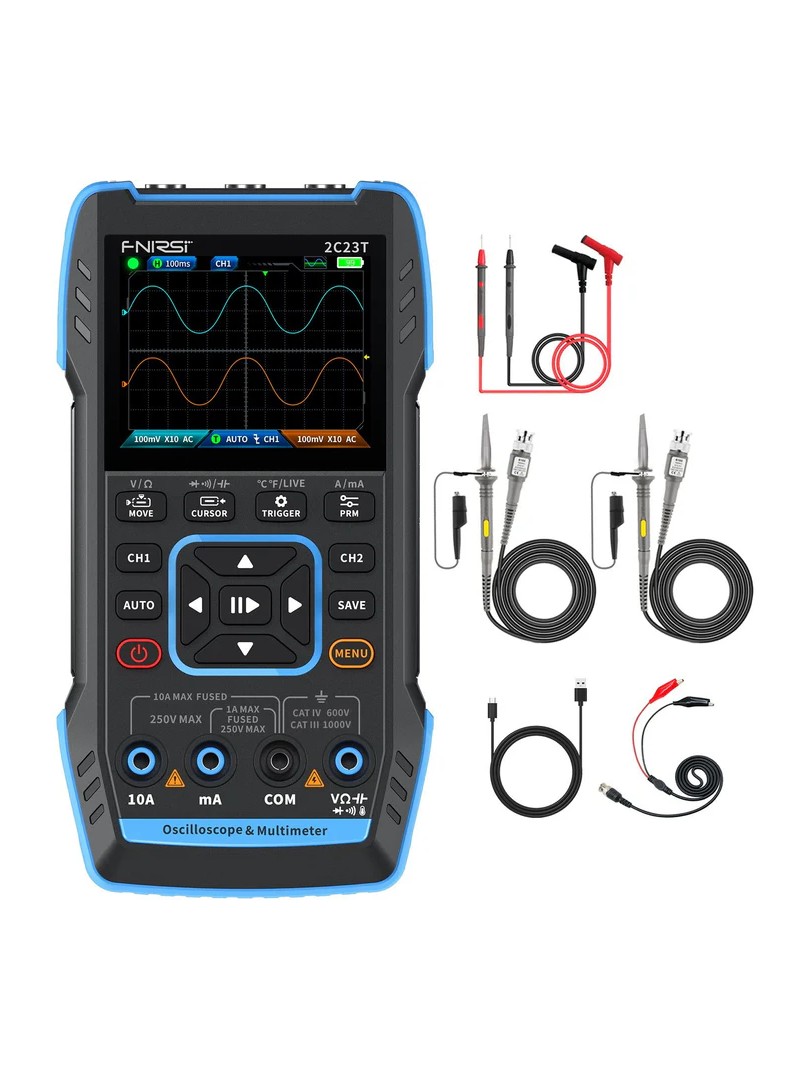

1 x FNIRSI 2C23T 3IN1 2Channel Handheld Digital Oscilloscope 10MHZ*2 50MS/s Multimeter + Function Signal Generator with All Accessories
