BTT BigTreeTech ekran dotykowy TFT35 SPI v2.1 dla CB1

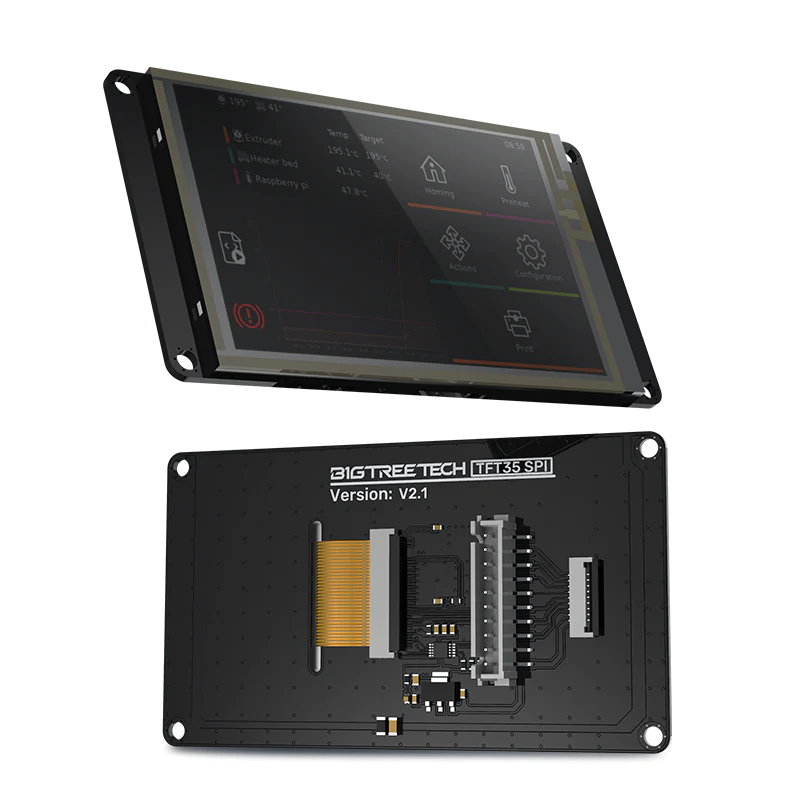

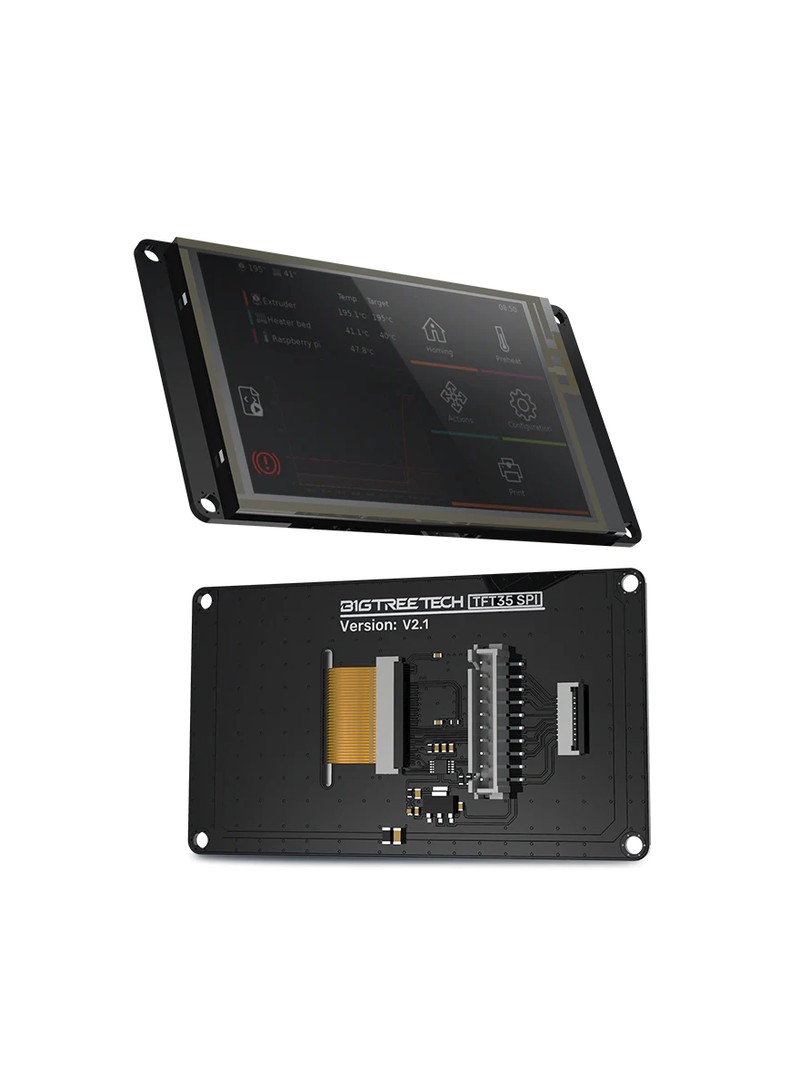

BIGTREETECH TFT35 SPI V2.1 is a medium-size and clear 3D printer display developed by the 3D printing team of Shenzhen Big Tree Technology Co., Ltd.

Features

1. SPI is used for LCD display, and I2C is used for touch. The touch screen is controlled by the chip on the motherboard, which significantly reduces its cost.

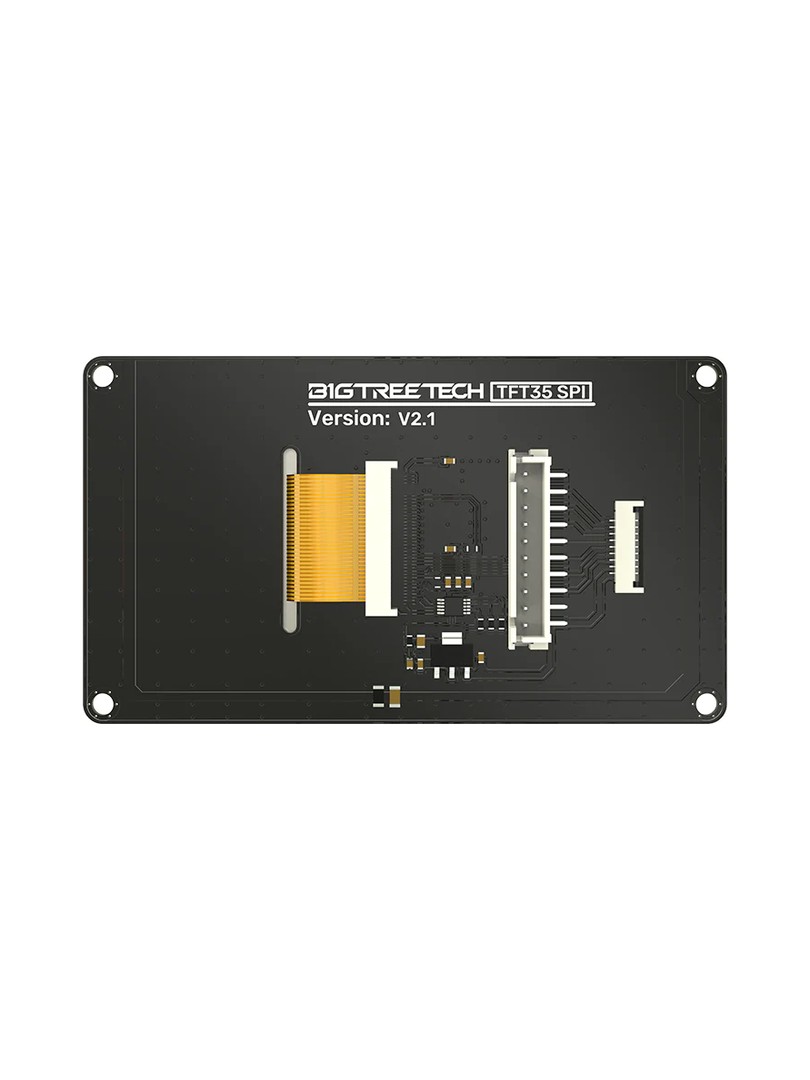

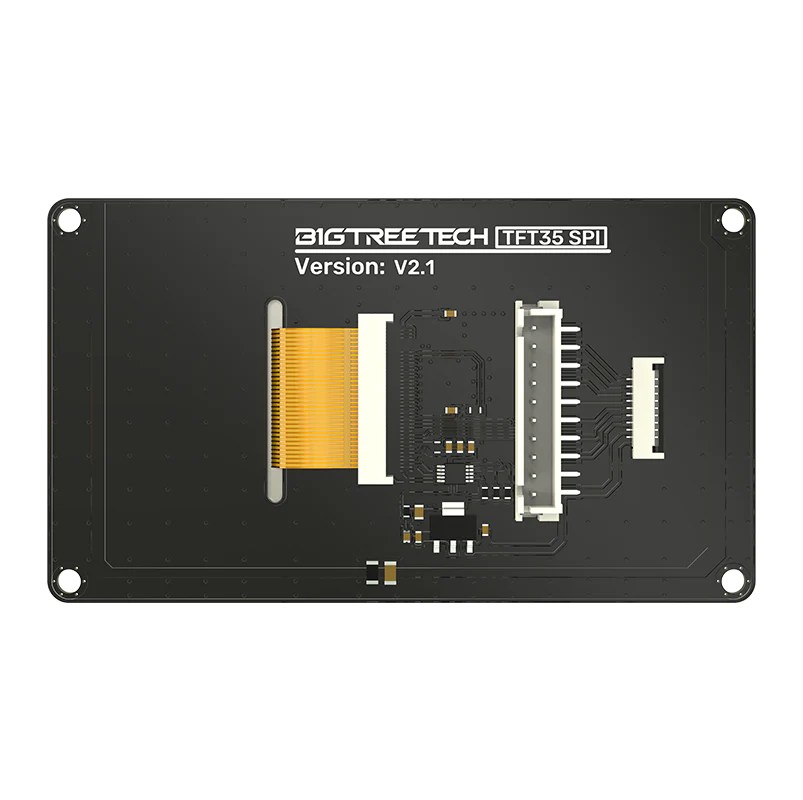

2. It is connected to the motherboard through the FPC cable, simple and convenient.

Designed with XH2.54 terminal, which can communicate with the board through the terminal.

Parameters

1. Product Dimensions: 98 x 56mm
2. Mounting Dimensions: 98 x 56mm
3. Input Voltage: DC 5V
4. Logic Voltage: DC 3.3V

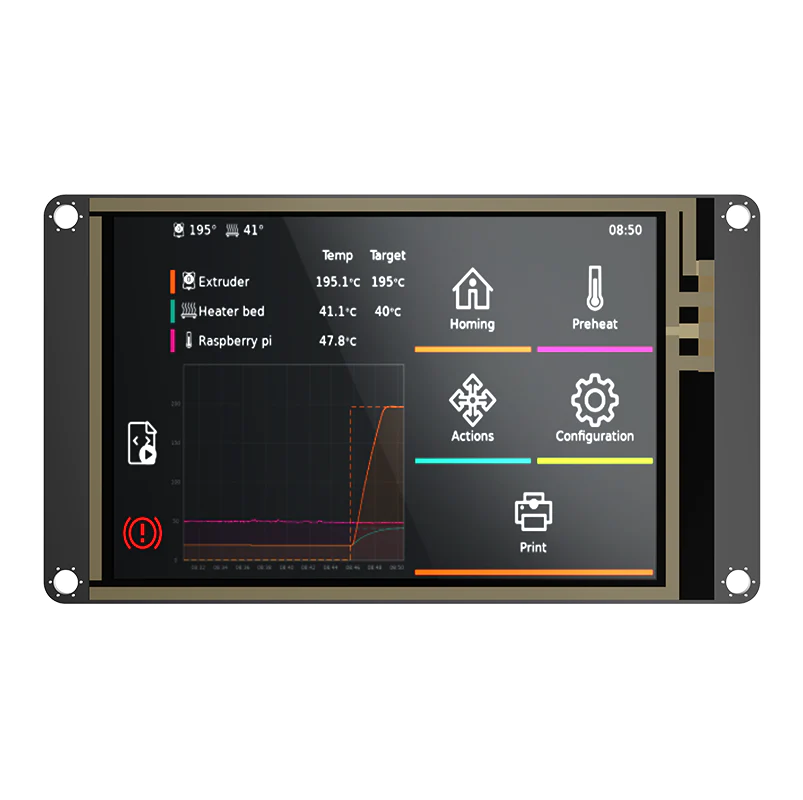

5. Screen Size: 3.5-inch
6. Resolution: 480x320
7. Driver IC for SPI Display: ILI9488
8. Driver IC for Touch: NS2009

Indicator Light

When the motherboard is powered on: the power indicator, D2 red light, lights up, indicating that the power supply is functioning normally.
